Optical Transceiver 10G SFP+ SR Duplex MMF 850nm 300m LC compatible with Juniper/Cisco/MikroTik

Name: Optical Transceiver 10G SFP SR Duplex MMF 850nm 300m LC compatible with JuniperCiscoMikroTik
Brand: NUFIBER
Price: 1 USD

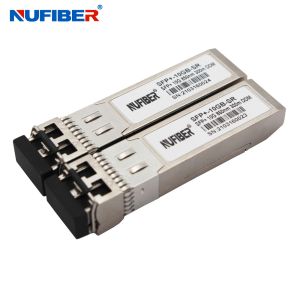

Quality Optical Transceiver 10G SFP+ SR Duplex MMF 850nm 300m LC compatible with Juniper/Cisco/MikroTik for sale

Brand Name : NUFIBER

Model Number : SFP-10G-SR

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union,Credit Card

Supply Ability : 10,000 pcs per month

Delivery Time : Within 1-3 work days

Packaging Details : 10pcs/plastic bag, 500pcs/carton

Data Rate : 10Gb/s

Wavelength : 850nm

Distance : 300m

Connector : LC

DDM : Support

Fiber Type : Multi Mode Duplex LC

Power Supply : 3.3V

Working Temperature : 0~70℃

Warranty : 1 year

Compatibility : Huawei, Cisco, HP, H3C...

Contact Now

Optical Transceiver 10G SFP+ SR Duplex MMF 850nm 300m LC compatible with Juniper/Cisco/MikroTik

Description

NuFiber's SFP+-10GB-SR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP+-10GB-SR converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.

The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Features

Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
850nm VCSEL transmitter, PIN photo-detector
MMF links up to 300m
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1W
Temperature Range: 0~ 70°C
RoHS compliant

Applications

10GBASE-SR/SW Ethernet
SONET OC-192 / SDH
10G Fibre Channel

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λt	840	850	860	nm
RMS spectral width	λ_RMS			4	nm
Average Optical Power	Pavg	-7.3		-1	dBm	1
Optical Power OMA	Poma		-1.5		dBm
Laser Off Power	Poff			-30	dBm
Extinction Ratio	ER	3.5			dB
Transmitter Dispersion Penalty	TDP			3.9	dB	2
Relative Intensity Noise	Rin			-128	dB/Hz	3
Optical Return Loss Tolerance		20			dB
Receiver Section:
Center Wavelength	λr	840		860	nm
Receiver Sensitivity (OMA)	Sen			-11.1	dBm	4
Stressed Sensitivity (OMA)	Sen_ST			-7.5	dBm	4
Los Assert	LOS_A	-30		-	dBm
Los Dessert	LOS_D			-12	dBm
Los Hysteresis	LOS_H	0.5			dB
Overload	Sat	0			dBm	5
Receiver Reflectance	Rrx			-12	dB
