8BNC Fiber Video Transmitter And Receiver 1 Year Warranty

Name: 8BNC Fiber Video Transmitter And Receiver 1 Year Warranty
Brand: NUFIBER
Price: 1 USD

Quality 8BNC Fiber Video Transmitter And Receiver 1 Year Warranty for sale

Brand Name : NUFIBER

Model Number : NF-8V-T/R-F20

Certification : CE FCC ROHS

Place of Origin : China

MOQ : 1 pair

Payment Terms : Western Union, T/T

Supply Ability : 5000 pair per month

Delivery Time : 1-3 days

Packaging Details : 10pair/ carton standard export packing

Product name : Fiber Optic Transmitter

Size : 21*13.5*2.5cm

Color : Black

Electric port : 8 channel BNC

warranty : 1 year

fiber type : Single fiber single mode

Wavlength : 1310nm/1550nm

Material : Iron case

Distance : 20KM

Contact Now

Fiber Coaxial Video Converter 8BNC Fiber Video Transmitter and Receiver for CCTV NF-8V-T/R-F20

Description
NuFiber® Fiber Optic Video Transceiver NF-8V1D-T/R provides for the digital transmission of 8 Channels Composite Video, and 1 return rs485 data, no audio, It is also designed for applications that require control of PTZ cameras.
Single-Mode or Multi-Mode, NF-8V1D-T/R can support FC/PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km or Multi-mode 1km.

Key Features
• Support Point-to-Point or Daisy-Chain connection
• Uncompressed Digital Composite Video over one fiber
• Compatible with all PAL, NTSC,SECAM Video Systems
• Multimode Fiber Support for Distances up to 1.2 km
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Produce according to customer's specifications,providing OEM

Specifications

• Video
Video input/output impedance	BNC 75 Ω
Number of Channels	8 Channels Video
Video input	1 volt pk-pk (75 ohms)
Bandwidth	5 Hz - 8 MHz
Bit Resolution	8-Bit Digital Transmission
Differential Gain	< 1.5%
Differential Phase	< 1.5 °
Tilt	< 5%
Signal-to-Noise Ratio(SNR)	> 67 dB
• Data
Data Format	RS485
Bit Error Rate	10E-9
• Connectors
Optical	FC (ST, SC Optional)
Video	BNC
• Electrical & Mechanical
Input Power Requirements	DC5V @ 2A
Power Adapter	AC 100V~240V
Stand-Alone Dimensions	21013525 mm
Card for 4U Rack Dimensions	19814050 mm
• Environmental
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +70°C
Relative Humidity	0% ~ 95% (non-condensing)
MTBF	>100,000 hours

Products Show

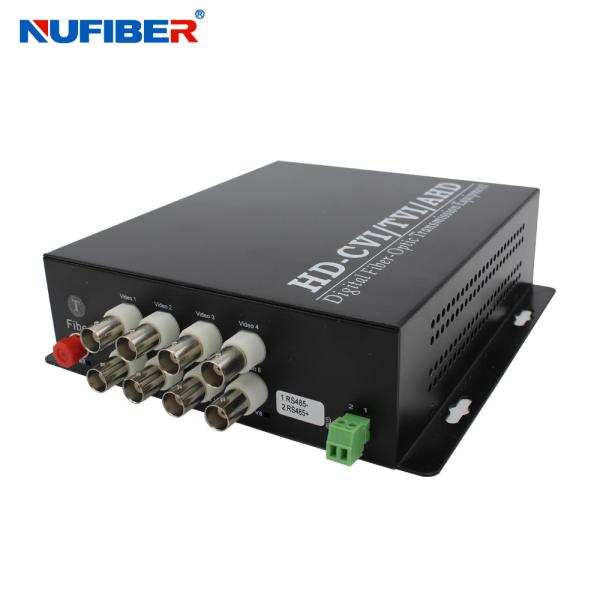

8BNC Fiber Video Transmitter And Receiver 1 Year Warranty

Connection Diagram

Packing & Shipping

8BNC Fiber Video Transmitter And Receiver 1 Year Warranty Images
